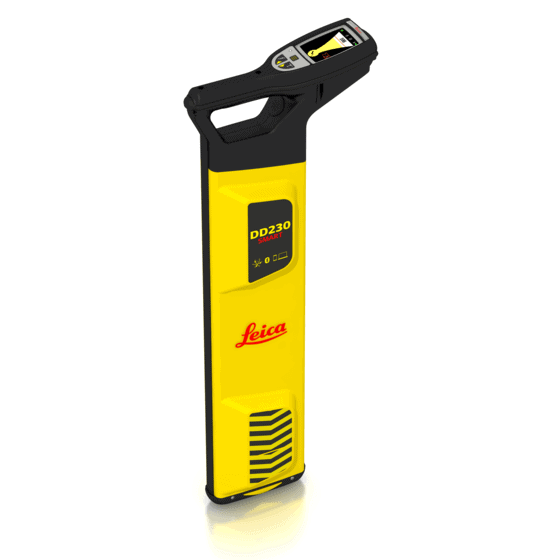

Leica – DD230 Smart Locator
About this product
Leica Geosystems is known for premium products and innovative solution development. With precise & accurate instruments, Leica Geosystems delivers value every day to those shaping the future of our world.
Leica – DD230 Smart Locator
About this product
Leica Geosystems is known for premium products and innovative solution development. With precise & accurate instruments, Leica Geosystems delivers value every day to those shaping the future of our world.
About this product
Leica Geosystems is known for premium products and innovative solution development. With precise & accurate instruments, Leica Geosystems delivers value every day to those shaping the future of our world.
Leica – DD230 Smart Locator Features
- Power: 50 / 60 Hz, mains electrical and harmonics
- Radio: 15kHz to 60kHz
- Auto: Power, Radio, 33kHz
- Transmitter Modes 131.072 (131) kHz, 32.768 (33) kHz, 8.192 (8) kHz, 512 Hz, 640 Hz
- Depth Range: Line 0.1m to 5m, Line 4 inches to 16.4 feet, Sonde 0.1m to 7m, Sonde 4 inches to 23 feet
- Depth Accuracy* 5%
- Bluetooth: Class 2 BLE dual mode module, Bluetooth Classic 2.1, Bluetooth 4.0 (LE)
- GPS** Chipset (1): u-blox®GPS, Reciever Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1, Accuracy (2): Horizontal Position 2.5 m, Autonomous, 2.0 m SBAS,CEP Start time: Cold 45 s typical, Aided 7 s, typical, Hot 1 s typical
- Memory Capacity; 8 GB internal memory 8 GB internal memory
- Environmental Standard: IP66 IP66
- Operating Temperature -20 °C to +50 °C, -4 °F to +122°F
- Battery 7.4V Rechargeable Li – Ion
- Battery operating time *** 15 h
- Dimensions (HxWxD) 765x290 x93mm, 30.12 x11.42x3.66 inches
- Weight with batteries 2.7Kg, 5.95 lbs
Leica DD Smart Utility – Datasheet
751.58 KB
